the elite system













The Elite System

The Elite System is a flooring system designed to provide safety, comfort and durability. With a density wear layer installed on top a cushion and base pad, this multi-layered system provides the ultimate solution for shock absorption while providing the utmost support and traction during intense strength and conditioning training.

The Elite System's top wear layer consist of a vulcanized virgin rubber that provides an aesthetic playing surface which is designed and manufactured for sound reduction in free weight areas, is slip resistant for maximum safety and provides increased stability for cardio and weight equipment.

The Elite System's base layer comes in two different densities: A higher density product is suited for high impact and low energy return for heavy weight loads. A lower density material that has attributes for high energy return with low fatigue factor for Plyometrics and box jumping while still being suitable for high impact areas.

FEATURES AND BENEFITS

  • Multilayer, Vulcanized Rubber
  • Available in Tiles and Rolls
  • Designed for Durability
  • Slip-Resistant Surface
  • Easy Maintenance Without Waxes or Finishes
  • Wide Variety of Color Choices
  • Often qualifies for LEED credits

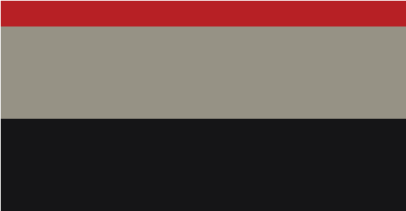

THE ELITE STANDARD

REACTION AND/OR PROXL TOP WEAR LAYER
An attractive and functional top wear layer that provides traction and safety for training activity

MID CUSHION LAYER
A mid cushion layer is designed to provide stability and structural integrity under impact stress

BASE PAD
A bottom shock reducing layer which absorbs energy and softens sound transmissions

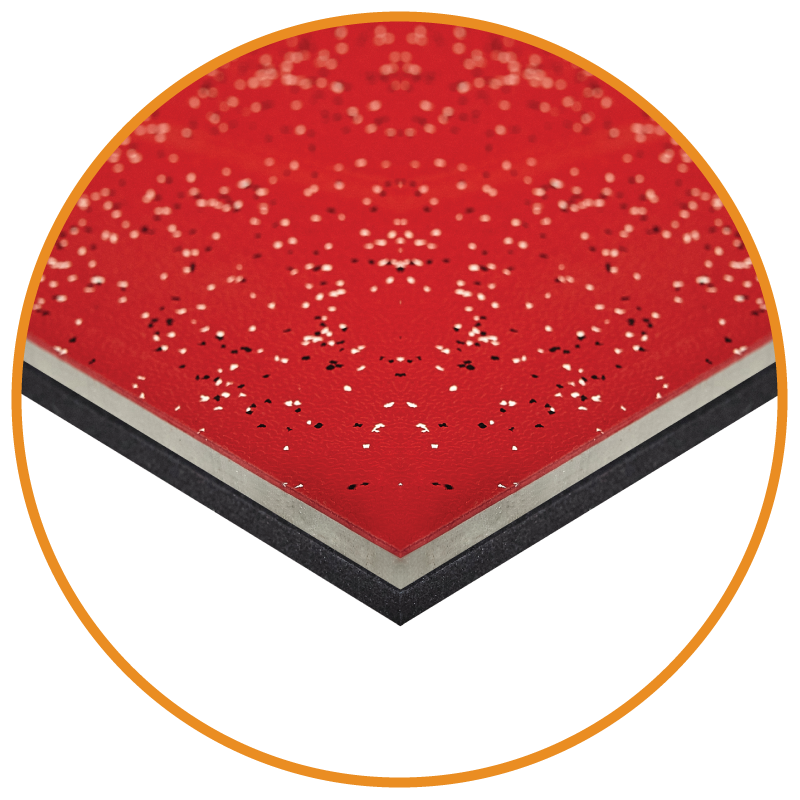

ELITE 11
3.5mm top layer with an 8mm base layer

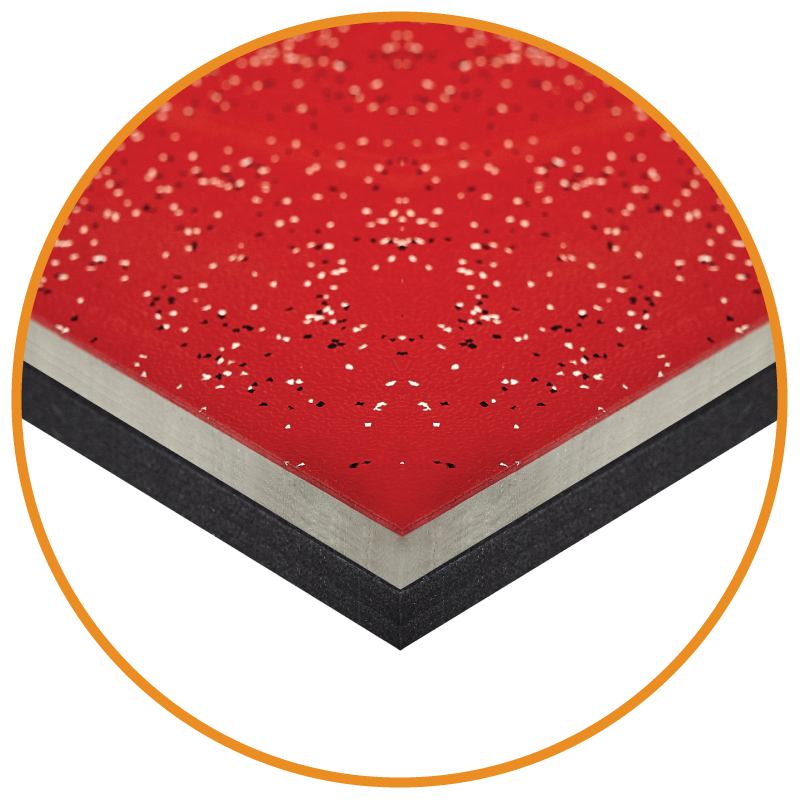

ELITE 18
6mm top layer with a 12mm base layer

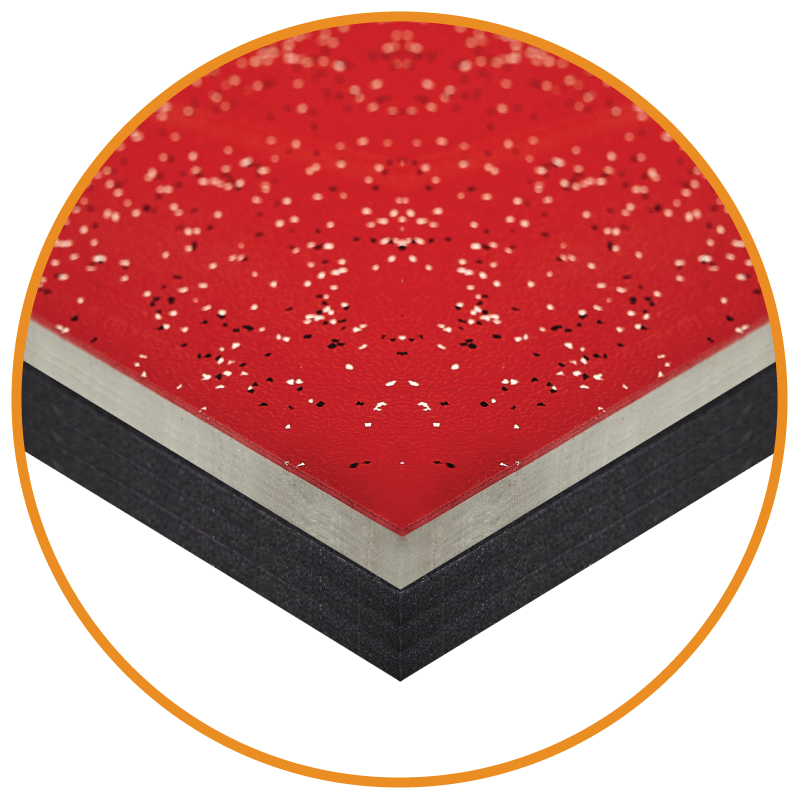

ELITE 24
6mm top layer with an 18mm base layer

◆ Colors shown are only indicative, as true color reproduction is not possible

◆ Colors will be matched to within ± one tone on the pantone chart


SPECIFICATIONS:

Tiles

Construction: Multilayer Vulcanized Rubber
Thickness: 10mm, 8mm, 6mm
Size: 1m x 1m (39.4" x 39.4")
Area: 10.75 sq.ft.
Finish: Matte
FORMATS:
Standard square edge format, or can optionally be interlocked for easier installation.

Roll

Construction: Multilayer Vulcanized Rubber
Thickness: 10mm, 8mm, 6mm, 3.5mm
Width: 1.22m (4')
Length: (10mm, 8mm): 9.144m (30')
(6mm, 3.5mm): 15.24m (50')
Area: (10mm, 8mm): 120 sq.ft.
(6mm, 3.5mm): 200 sq.ft.
Finish: Matte
perfect for:
Weight Rooms • Fitness Rooms and more
